COATED CBN SERIES

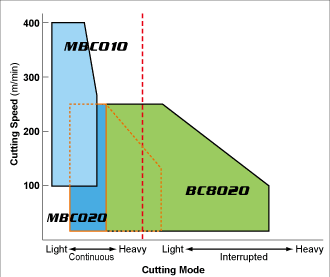

FEATURES
With the expansion of BC8020, Mitsubishi can offer 3 coated CBN grades for machining of hardened steels. These 3 coated CBN grades cover a wide range of applications.
To achieve longer tool life, Mitsubishi uses a unique "Particle-activated Sintering Method", combined with increased cutting edge strength. With high crater wear resistance CBN grades and a wear resistant ceramic coatings, longer tool life and improved machine efficiency are obtained.
| Grade | Grade Features and Application | Main Component | Coating Layer |
|---|---|---|---|
  |
High effi ciency coated CBN Increased cutting edge strength and high crater wear resistant CBN grade in combination with a highly wear resistant TiAlN coating, results in longer tool life and improved machining efficiency under heavy duty or interrupting cutting. |
CBN (Medium Grain) TiN Al2O3 |
TiAlN |
 |
Coated CBN for High Speed Continuous Cutting MBC010 makes the best use of a special ceramic binder structure, actualizing high wear resistance. High wear resistance enables continuous machining at high speeds of over 300m/min. |
CBN (Micro Grain) TiN Al2O3 |
TiN |
 |
Coated CBN for general cutting (First recommendation) Uses a CBN substrate that has high cutting edge rigidity. The TiAlN based coating delivers superb wear resistance. CBN grade first recommendation. |
CBN (Micro Grain) TiN Al2O3 |
TiAlN |
CUTTING PERFORMANCE

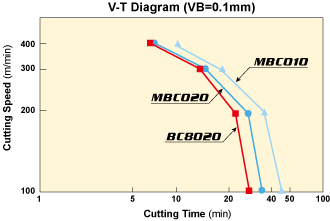

Continuous Cutting
<Cutting Conditions>
- Workpiece:
- Alloy steel (60HRC)
- External Continuous Cutting
- Insert:
- NP-CNGA120408GA
- Feed:
- 0.1mm/rev
- Depth of Cut:
- 0.1mm
- Wet Cutting
Interrupted Cutting
<Cutting Conditions>
- Workpiece:
- Alloy steel (60HRC)
- External Interrupted Cutting 8 Groove
- Insert:
- NP-CNGA120408GA
- Cutting Speed:
- 150m/min
- Feed:
- 0.15mm/rev
- Depth of Cut:
- 0.2mm
- Dry Cutting
<Cutting Conditions>
- Workpiece
- Alloy steel (60HRC)
- Insert
- NP-CNGA120408GA
- Cutting Speed
- 150m/min
- Feed
- 0.15mm/rev
- Depth of Cut
- 0.5mm
- Wet Continuous Cutting
INTERRUPTED CUTTING (CRATER WEAR)
FRACTURE RESISTANCE
INTERRUPTED CUTTING (CHIPPING)
FRACTURE RESISTANCE
- BC8020
- exhibits excellent cutting performance for severe or interrupted machining.
<Cutting Conditions>
- Workpiece
- Alloy steel (60HRC)
- Insert
- NP-CNGA120408GS2
- Cutting Speed
- 300m/min
- Feed
- 0.1mm/rev
- Depth of Cut
- 0.1mm
- Dry Continuous Cutting
<Cutting Conditions>
- Workpiece
- Alloy steel (60HRC)
- Insert
- NP-CNGA120408GS2
- Cutting Speed
- 150m/min
- Feed
- 0.15mm/rev
- Depth of Cut
- 0.2mm
- Dry Continuous Cutting
- MBC010
- employs TiN based coating for superior, consistent surface finishes.
<Cutting Conditions>
- Workpiece
- Alloy steel (60HRC)
8 Grooves - Insert
- NP-CNGA120408GA4
- Cutting speed
- 200m/min
- Feed
- 0.1mm/rev
- Depth of Cut
- 0.1mm
- Dry Interrupted Cutting
<Cutting Conditions>
- Workpiece
- Alloy steel (60HRC)
Round bar - Insert
- NP-CNGA120408GA4
- Cutting speed
- 220m/min
- Feed
- 0.1mm/rev
- Depth of Cut
- 0.1mm
- Dry Continuous Cutting
- MBC020
- exhibits excellent cutting performance for a wide range of applications from continuous through to interrupted machining.
