CHIP CONTROL FOR TURNING
CHIP BREAKING CONDITIONS IN STEEL TURNING
| Type | A Type | B Type | C Type | D Type | E Type |
|---|---|---|---|---|---|
| Small Depth of Cut d>7mm |
 |
 |
 |
 |
 |
| Large Depth of Cut d=7—15mm |
 |
— |  |
 |
 |
| Curl Length l |
Curless | l≥50mm | l≤50mm 1—5 Curl |
 1 Curl |
Less Than 1 Curl Half a Curl |
| Note |
|
|
Good | Good |
|

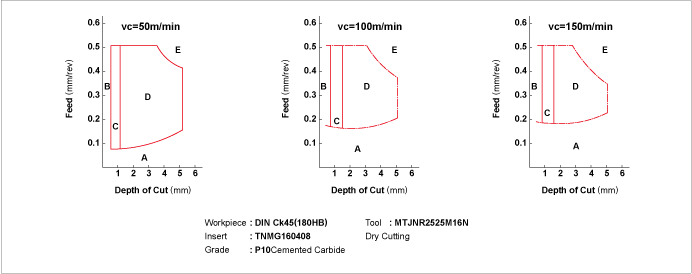

Cutting speed and chip control range of chip breaker
In general, when cutting speed increases, the chip control range tends to become narrower.

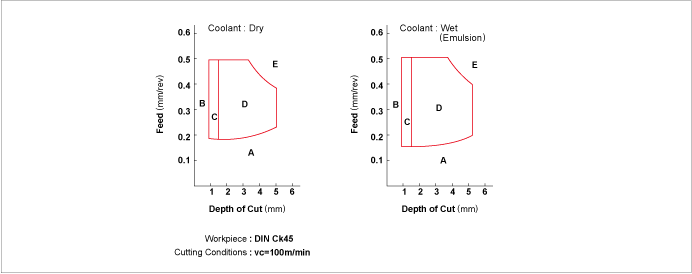

Effects of coolant on the chip control range of a chip breaker
If the cutting speed is the same, the range of chip control differs according to whether coolant is used or not.
