CARTRIDGE
 LL ISO type Lever lock type PTGN Type

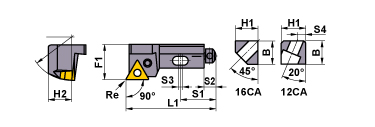

PTGN type

Type Order Number Stock Dimensions(mm) Standard
Corner
Radius
Re(mm)
Min. Cutting
Diameter
D1(mm)
Insert Number CAD Data
Download
 H1  B L1 S1 S2 S3 S4 H2 F1
PTGN PTGNR12CA16 15.5 16 55 20 8 2 6 12 20 0.8 50 TNMA
TNMG
TNMM
TNGA
TNGG
1604__
PTGNL12CA16 15.5 16 55 20 8 2 6 12 20 0.8 50 1604__
PTGNR16CA16 16 17 63 25 8 2.5 - 16 25 0.8 60 1604__
PTGNL16CA16 16 17 63 25 8 2.5 - 16 25 0.8 60 1604__

Stock : Inventory maintained in Japan.
