Boring >FCTU1 >FCTU120R

Boring

FCTU1
（F Type Boring Bar）

FCTU120R

Product Information

  • 11°positive insert.
  • Screw-on type/Clamp-on type
  • l/d is 3 to 5 times the diameter.
  • 7°positive insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

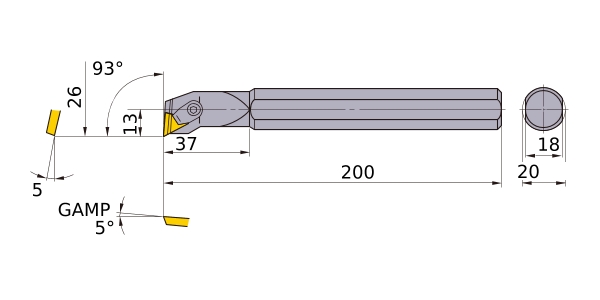

DMIN 26
DCON 20
KAPR 93°
LF 200
LDRED 37
WF 13
H 18
GAMF 5
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__1603
