Boring >FSTU1 >FSTU110L

Boring

FSTU1
（F Type Boring Bar）

FSTU110L

Product Information

  • 11°positive insert.
  • Screw-on type/Clamp-on type
  • l/d is 3 to 5 times the diameter.

The actual product may differ from the displayed image.

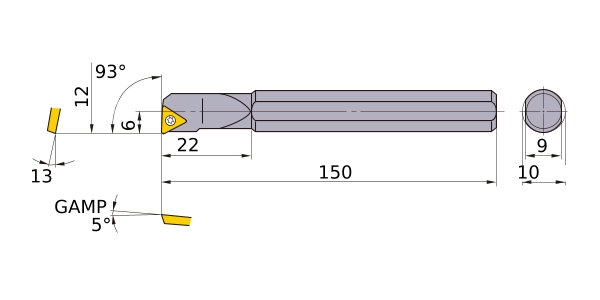

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M
DMIN 12
DCON 10
KAPR 93°
LF 150
LDRED 22
WF 6
H 9
GAMF 13
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number TP__0902
