Boring >PCLN >A50UPCLNR12

Boring

PCLN
（P Type Boring Bar）

A50UPCLNR12

Product Information

  • Economical negative insert.
  • Lever lock type.
  • l/d is 3 times the diameter.
  • ISO standard.

The actual product may differ from the displayed image.

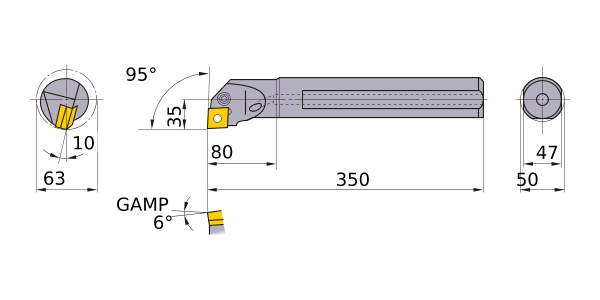

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DMIN 63
DCON 50
KAPR 95°
LF 350
LDRED 80
WF 35
H 47
GAMF 10
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number CN__1204
