Boring >S_SDQC >S10HSDQCR07

Boring

S_SDQC
(S Type Boring Bar)

S10HSDQCR07

Product Information

  • ISO standard.
  • 7°positive insert.
  • Screw-on type
  • The minimum cutting dameter is from 11mm.
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M

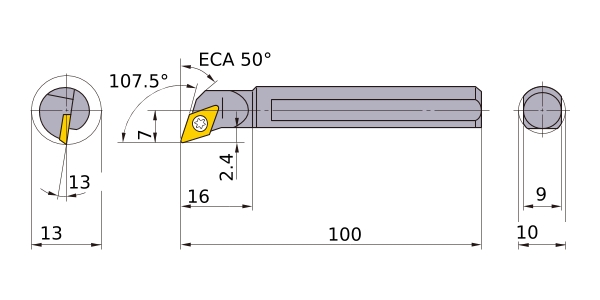

DMIN 13
DCON 10
KAPR 107.5°
LF 100
LDRED 16
WF 7
H 9
WF2 2.4
GAMF 13
RE 0.4
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__0702
2D Model (DXF)
CAD data name Download
S10HSDQCR07
CAD

3D Detail Model (STP,STL)
CAD data name Download
S10HSDQCR07
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S10HSDQCR07_MR0_4
0.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
