Boring >S_SDQC >S32SSDQCR15

Boring

S_SDQC
(S Type Boring Bar)

S32SSDQCR15

Product Information

  • ISO standard.
  • 7°positive insert.
  • Screw-on type
  • The minimum cutting dameter is from 11mm.
  • l/d is 3 to 5 times the diameter (up to 7 times with the carbide shank).

The actual product may differ from the displayed image.

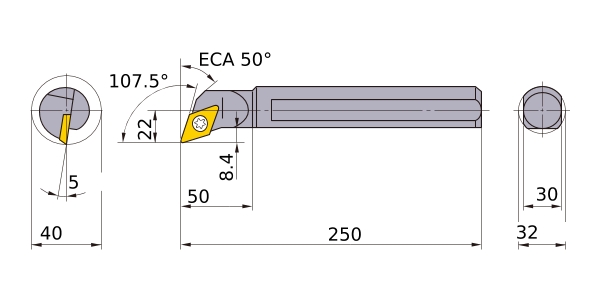

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DMIN 40
DCON 32
KAPR 107.5°
LF 250
LDRED 50
WF 22
H 30
WF2 8.4
GAMF 5
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__1504
2D Model (DXF)
CAD data name Download
S32SSDQCR15
CAD

3D Detail Model (STP,STL)
CAD data name Download
S32SSDQCR15
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S32SSDQCR15_MR0_8
0.8 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
