Boring >DDUN >A32S-DDUNL15

Boring

DDUN
（Double Clamp Dimple Bar）

A32S-DDUNL15

Product Information

  • Holds inserts securely.
  • Excellent cutting edge repeatability.
  • New double clamp type.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand L
Stock
Unit of Length M

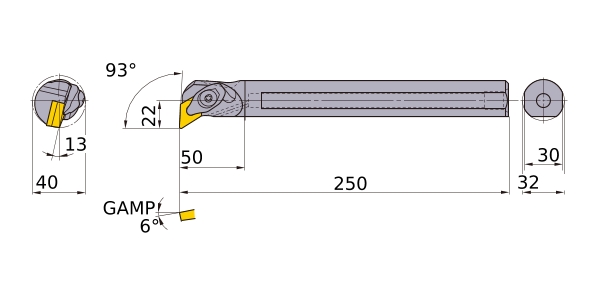

DMIN 40
DCON 32
KAPR 93°
LF 250
LDRED 50
WF 22
H 30
GAMF 13
RE 0.8
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__1504
