Drills >MSE >MSE0021SB

Drills

MSE
（MIRACLE MINI STAR DRILL）

MSE0021SB

Product Information

  • Wide flute for preventing chip jamming.
  • Stable, small diameter machining.

The actual product may differ from the displayed image.

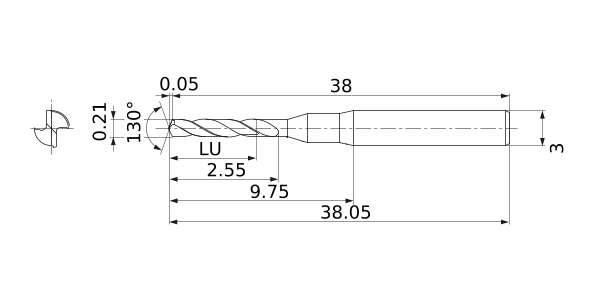

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade VP20MF
Stock
Unit of Length M
DC 0.21
DCON 3
SIG 130°
LF 38
OAL 38.05
LH 9.75
LCF 2.55
FHA 35°
PL 0.05
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.009
Type of Coolant External
2D Model (DXF)
CAD data name Download
MSE0021SB
CAD
