Drills >VSD >VSDD0180

Drills

VSD
(Straight shank)

VSDD0180

Product Information

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M

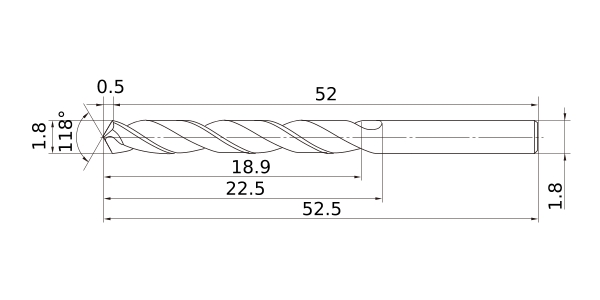

DC 1.8
DCON 1.8
SIG 118°
LF 52
OAL 52.5
LCF 22.5
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
