Drills >VAPDS >VAPDSD0250

Drills

VAPDS
（Short, High precision）

VAPDSD0250

Product Information

  • Highly efficient drilling and long tool life have been achieved with the newly developed Violet coating. (Standard drill depth : less than 3 times the drill diameter)

The actual product may differ from the displayed image.

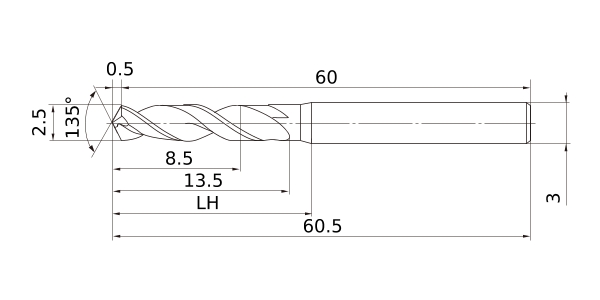

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 2.5
DCON 3
SIG 135°
LF 60
OAL 60.5
LCF 13.5
PL 0.5
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Recommended Cutting Condition
