Drills >TAW >TAWMN2600S32

Drills

TAW
(SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES)

TAWMN2600S32

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

The actual product may differ from the displayed image.

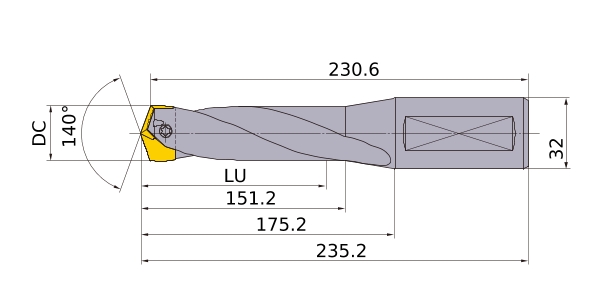

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M
DCON 32
SIG 140°
LF 230.6
OAL 235.2
LH 175.2
LBX 151.2
ld 5
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWMN2600S32
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWMN2600S32
CAD

3D Light Model (STP,STL)
CAD data name DC Download
TAWMN2600S32_MD25_5
25.5 CAD
TAWMN2600S32_MD25_6
25.6 CAD
TAWMN2600S32_MD25_7
25.7 CAD
TAWMN2600S32_MD25_8
25.8 CAD
TAWMN2600S32_MD25_9
25.9 CAD
TAWMN2600S32_MD26_0
26 CAD
TAWMN2600S32_MD26_1
26.1 CAD
TAWMN2600S32_MD26_2
26.2 CAD
TAWMN2600S32_MD26_3
26.3 CAD
TAWMN2600S32_MD26_4
26.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
