Drills >TAW >TAWLN2100S25

Drills

TAW
(SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES)

TAWLN2100S25

Product Information

  • Wavy cutting edge design for good chip control.
  • Serration geometry for accurate insert location.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock

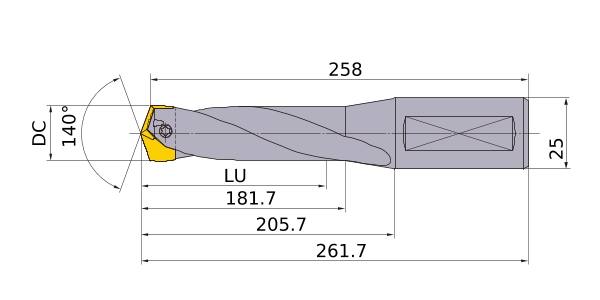

Unit of Length M
DCON 25
SIG 140°
LF 258
OAL 261.7
LH 205.7
LBX 181.7
ld 8
Cutting item count: CICT 1
Effective Cutting Edge 2
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
TAWLN2100S25
CAD

3D Detail Model (STP,STL)
CAD data name Download
TAWLN2100S25
CAD

3D Light Model (STP,STL)
CAD data name DC Download
TAWLN2100S25_MD20_5
20.5 CAD
TAWLN2100S25_MD20_6
20.6 CAD
TAWLN2100S25_MD20_7
20.7 CAD
TAWLN2100S25_MD20_8
20.8 CAD
TAWLN2100S25_MD20_9
20.9 CAD
TAWLN2100S25_MD21_0
21 CAD
TAWLN2100S25_MD21_1
21.1 CAD
TAWLN2100S25_MD21_2
21.2 CAD
TAWLN2100S25_MD21_3
21.3 CAD
TAWLN2100S25_MD21_4
21.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
