Drills >MCCH >MCCH0250X15S030

Drills

MCCH
(Drill For Composites)

MCCH0250X15S030

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade DT2030
Stock
Unit of Length M

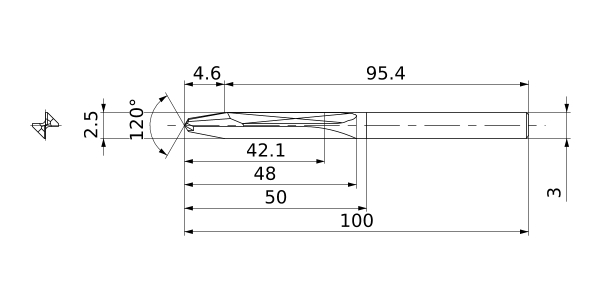

DC 2.5
DCON 3
SIG 120°
LF 95.4
OAL 100
LH 50
LU 42.1
LCF 48
FHA
ld 15
PL 4.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
