Drills >MCAH >MCAH0326X15S040

Drills

MCAH
(Drill For Composites)

MCAH0326X15S040

Product Information

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade DT2030
Stock
Unit of Length M

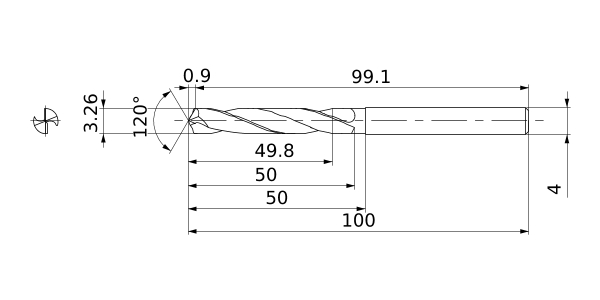

DC 3.26
DCON 4
SIG 120°
LF 99.1
OAL 100
LH 50
LU 49.8
LCF 50
FHA 20°
ld 15
PL 0.9
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant External

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
