Drills

MCAH
(Drill For Composites)

MCAH0638X05S070

Product Information

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade DT2030
Stock
Unit of Length M

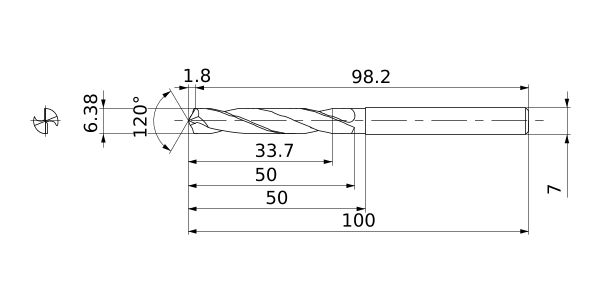

DC 6.38
DCON 7
SIG 120°
LF 98.2
OAL 100
LH 50
LU 33.7
LCF 50
FHA 20°
ld 5
PL 1.8
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant External

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
