Drills >DWAE-MINI >DWAE0110X02S030

Drills

DWAE-MINI
（SOLID CARBIDE DRILLS FOR SWISS-TYPE AUTOMATIC & SMALL CNC LATHES）

DWAE0110X02S030

Product Information

  • The wavy cutting edge, in contrast to conventional cutting edges that are easily damaged, provides both sharpness and cutting edge strength by resisting wear to the outer cutting edge.
  • Coated Grade DP102A
  • Unique Flute Form for Greater Rigidity

The actual product may differ from the displayed image.

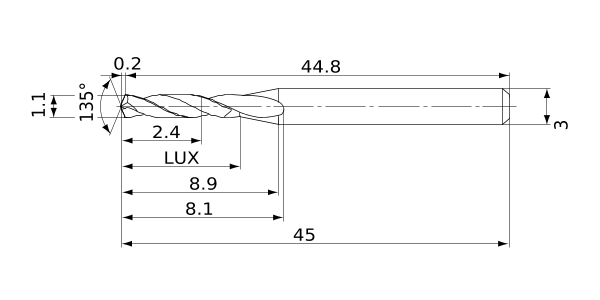

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP102A
Stock
Unit of Length M
DC 1.1
DCON 3
SIG 135°
LF 44.8
OAL 45
LH 8.9
LU 2.4
LCF 8.1
FHA 25°
ld 2
PL 0.2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.014
Type of Coolant External
2D Model (DXF)
CAD data name Download
DWAE0110X02S030
CAD
Disclaimer
