End Mills >AQX >AQXR202M10A30

End Mills

AQX


AQXR202M10A30

Product Information

  • Air coolant through.
  • The centre bottom cutting edge enables drilling and end milling without prepared hole.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

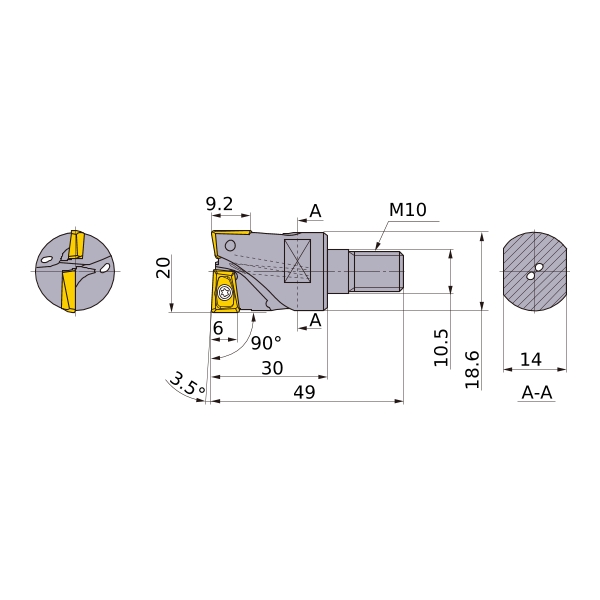

A3 6
DC 20
DCON 10.5
DCSFMS 18.6
KAPR 90°
LF 30
OAL 49
S10 14
APMX 9.2
WT 0.2
CRKS M10
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
