End Mills > APX3000_WELDON

End Mills

APX3000_WELDON

  • High accuracy, high quality vertical wall.

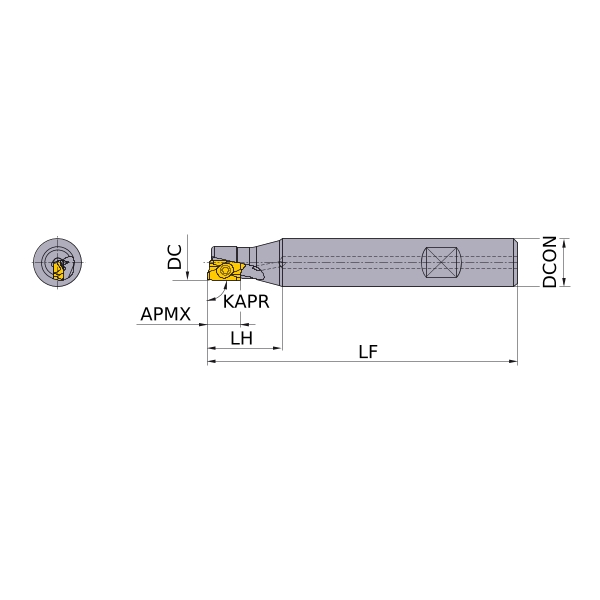

Type1 [Expand]

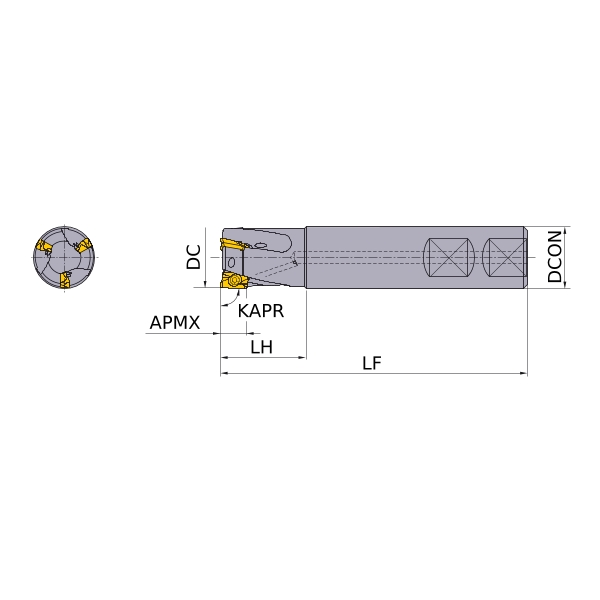

Type2 [Expand]

Type3 [Expand]

  1 2
Order Number Type CAD Type of Coolant Hand Name of Grade Grade Stock
APX3000R121WA16SA Type1 CAD R
APX3000R141WA16SA Type1 CAD R
APX3000R162WA16SA Type2 CAD R
APX3000R182WA16LA Type3 CAD R
APX3000R182WA16SA Type3 CAD R
APX3000R202WA20LA Type2 CAD R
APX3000R202WA20SA Type2 CAD R
APX3000R203WA20SA Type2 CAD R
APX3000R222WA20LA Type3 CAD R
APX3000R223WA20SA Type3 CAD R
APX3000R252WA25SA Type2 CAD R
APX3000R253WA25LA Type2 CAD R
APX3000R253WA25SA Type2 CAD R
APX3000R254WA25SA Type2 CAD R
APX3000R283WA25LA Type3 CAD R
APX3000R284WA25SA Type3 CAD R
APX3000R304WA32SA Type2 CAD R
APX3000R323WA32SA Type2 CAD R
APX3000R324WA32SA Type2 CAD R
APX3000R325WA32SA Type2 CAD R
R PRFRAD Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge D1 IC DMIN CUTDIA DAXX DC DC1 DC2 BD BD1 BD2 BD3 BD4 BD5 ap APMX HTB DCN CDI DCINX BDX CWX LBX L1 L L24 FLGT CBDP OAL LPR L2 LH L19 LU LF D4 DCON D2 DCX D5 DN DCSFMS D8 DAH DAH1 DAH2 DCCB CNT D9 B L3 LBB CDX L20 LDRED L15 LCF L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX RR GAMF GAMO LAMS ALF FHA KRINS STA WT RE RE1 RE2 RE3 ld BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 LTA LBYD KWL Breaker Use body Modular Blade Insert Number DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1 1 12 10 25 85 16 +15°   90°
1 1 14 10 25 85 16 +18°   90°
2 2 16 10 25 85 16 +22°   90°
2 2 18 10 25 120 16 +23°   90°
2 2 18 10 25 85 16 +23°   90°
2 2 20 10 60 150 20 +23°   90°
2 2 20 10 30 100 20 +23°   90°
3 3 20 10 30 100 20 +23°   90°
2 2 22 10 30 150 20 +23°   90°
3 3 22 10 30 115 20 +23°   90°
2 2 25 10 35 115 25 +24°   90°
3 3 25 10 70 170 25 +24°   90°
3 3 25 10 35 115 25 +24°   90°
4 4 25 10 35 115 25 +24°   90°
3 3 28 10 35 170 25 +25°   90°
4 4 28 10 35 115 25 +25°   90°
4 4 30 10 45 125 32 +25°   90°
3 3 32 10 45 125 32 +25°   90°
4 4 32 10 45 125 32 +25°   90°
5 5 32 10 45 125 32 +25°   90°
  1 2

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
