End Mills >APX3000_WELDON >APX3000R284WA25SA

End Mills

APX3000_WELDON


APX3000R284WA25SA

Product Information

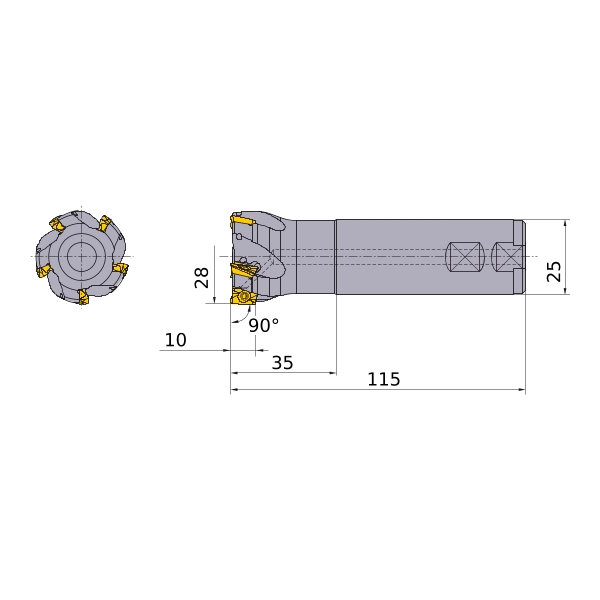

  • High accuracy, high quality vertical wall.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 28
DCON 25
KAPR 90°
RMPX 3.8
LF 115
LH 35
APMX 10
GAMP +19°
GAMF +25°
Cutting item count: CICT 4
Peripheral effective cutting edge count: ZEFP 4
RPMX 15500
2D Model (DXF)
CAD data name Download
APX3000R284WA25SA
CAD
