End Mills >BRP_SCREW_IN >BRP5NR201M10

End Mills

BRP5


BRP5NR201M10

Product Information

  • A wide variety of sizes.
  • Suitable for roughing of moulds and dies.
  • Max.depth of cut 5.5mm.
  • Multi functional milling.
  • 11°positive insert.
  • Round shape insert gives strong cutting edge.

The actual product may differ from the displayed image.

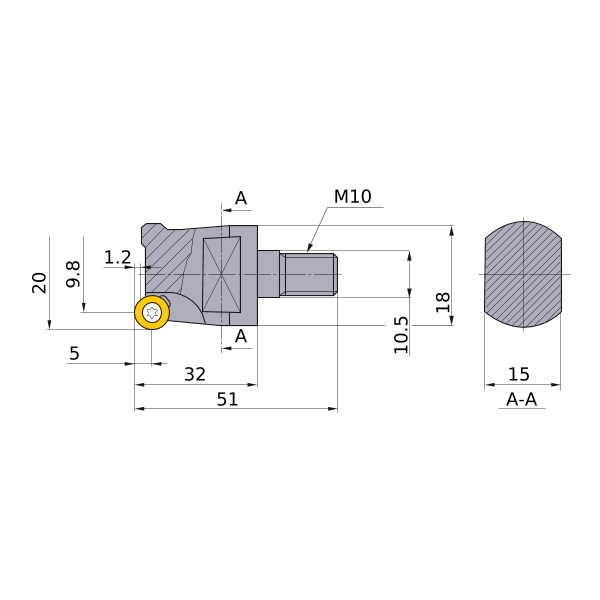

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
AZ 1.2
DC 9.8
DCX 20
DCON 10.5
DCSFMS 18
LF 32
OAL 51
S10 15
APMX 5
CRKS M10
Cutting item count: CICT 1
Peripheral effective cutting edge count: ZEFP 1
