End Mills >VPX200 >VPX200R2803SA25S

End Mills

VPX200
（Multi-functional Cutter for High Efficiency Machining）

VPX200R2803SA25S

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

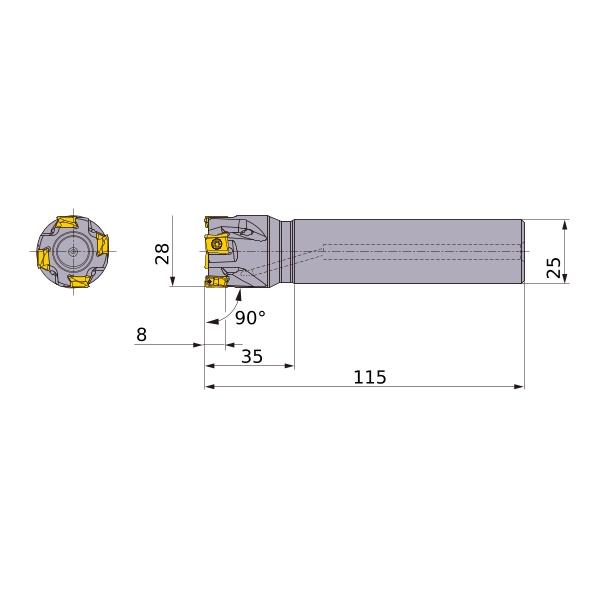

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 28
DCON 25
KAPR 90°
RMPX 0.84°
LF 115
LH 35
APMX 8
GAMP -6°
GAMF -25°
WT 0.41
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
Face effective cutting edge count: ZEFF 3
RPMX 27200
2D Model (DXF)
CAD data name Download
VPX200R2803SA25S
CAD
