End Mills >VPX200_SHELL_MM >VPX200-050A04A042R24

End Mills

VPX200_SHELL_MM
（Multi-functional Cutter for High Efficiency Machining）

VPX200-050A04A042R24

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

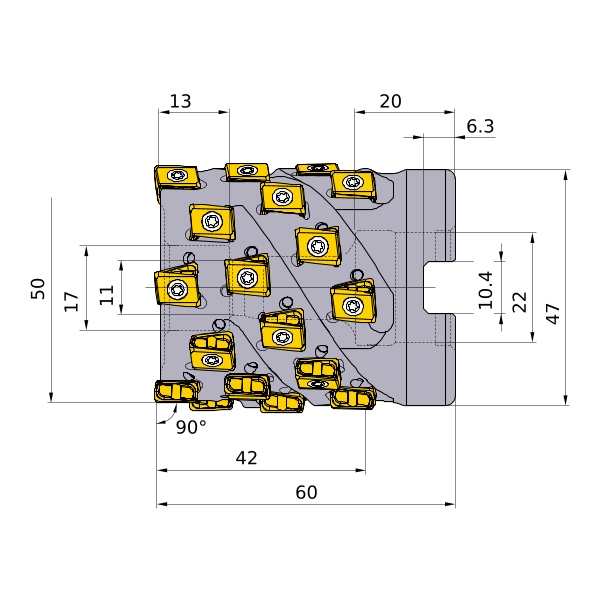

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 50
DCON 22
DCSFMS 47
DAH 11
DCCB 17
KAPR 90°
RMPX 0.42°
L8 6.3
LF 60
CBDP 20
LCCB 13
KWW 10.4
APMX 42
GAMP -6°
GAMF ‒25°
WT 0.55
Cutting item count: CICT 24
Peripheral effective cutting edge count: ZEFP 4
Face effective cutting edge count: ZEFF 4
