External Cutting >MWLN >MWLNR3225P08

External Cutting

MWLN


MWLNR3225P08

Product Information

  • High rigidity due to double clamp structure.
  • Simple insert exchange.
  • Economical negative insert.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

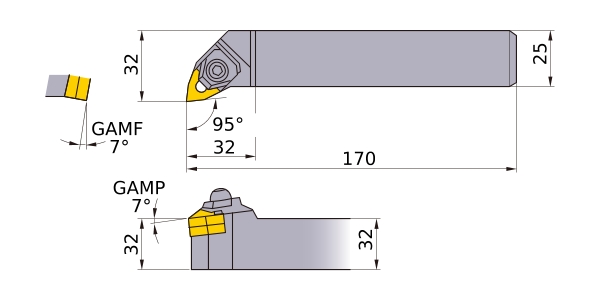

Unit of Length M
B 25
KAPR 95°
LF 170
LH 32
WF 32
H 32
HF 32
Peripheral effective cutting edge count: ZEFP 1
Insert Number WN__0804
