External Cutting >SVJD >SVJDR2525M16

External Cutting

SVJD


SVJDR2525M16

Product Information

  • Screw-on type
  • High rake and good sharpness.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock

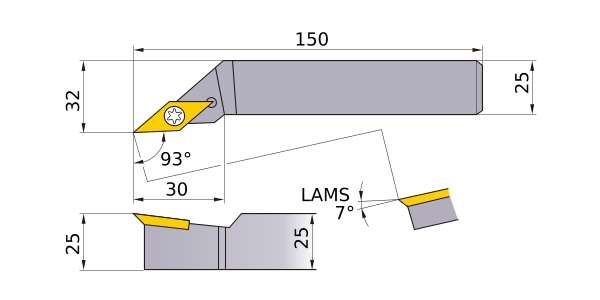

Unit of Length M
B 25
KAPR 93°
LF 150
LH 30
WF 32
H 25
HF 25
Peripheral effective cutting edge count: ZEFP 1
Insert Number VD__1603
2D Model (DXF)
CAD data name Download
SVJDR2525M16
CAD
