Face Cutter >APX4000_MM >APX4000-063A06RA

Face Cutter

APX4000_MM


APX4000-063A06RA

Product Information

  • High accuracy, high quality vertical wall.
  • Air coolant through.

The actual product may differ from the displayed image.

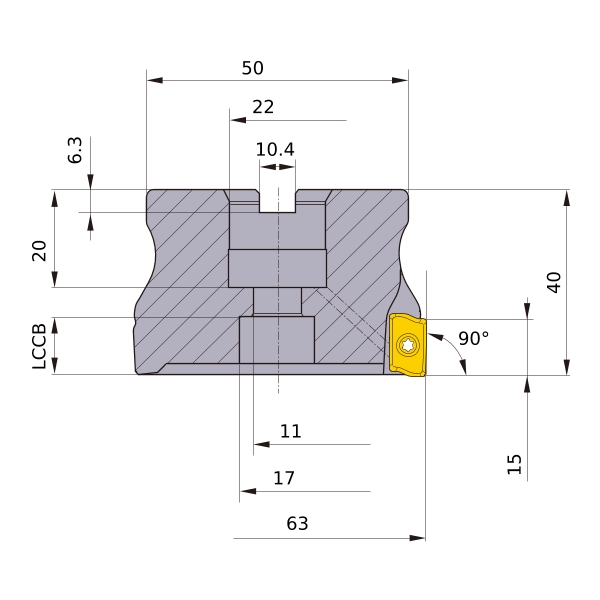

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
DC 63
DCON 22
DCSFMS 50
DAH 11
DCCB 17
KAPR 90°
RMPX 3
L8 6.3
LF 40
CBDP 20
KWW 10.4
APMX 15
GAMP +22°
GAMF +26°
WT 0.5
Peripheral effective cutting edge count: ZEFP 6
RPMX 10800
2D Model (DXF)
CAD data name Download
APX4000-063A06RA
