Face Cutter >AHX640S_MM >AHX640S-160C07NR

Face Cutter

AHX640S_MM
(GENERAL CUTTING)

AHX640S-160C07NR

Product Information

  • Heptagonal double-sided insert.
  • Economical 14 corner use.
  • Fine pitch design allows high feed milling.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock

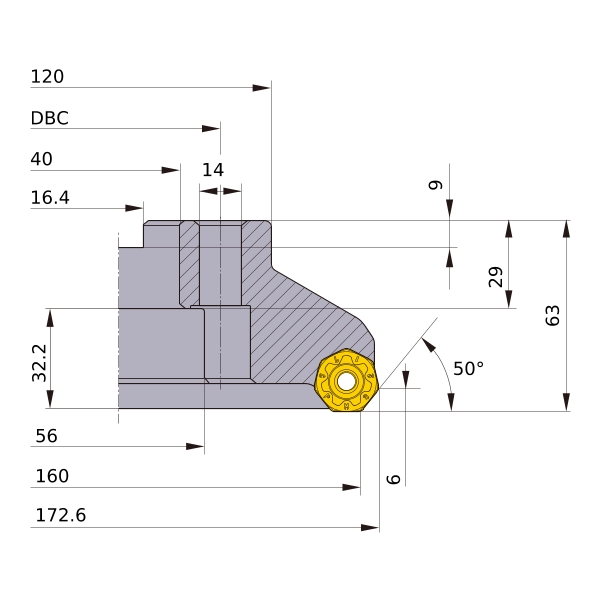

Unit of Length M
DC 160
DCX 172.6
DCON 40
DCSFMS 120
DAH 14
DCCB 56
KAPR 50°
L8 9
LF 63
CBDP 29
LCCB 32.2
KWW 16.4
APMX 6
GAMP -6°
GAMF -5°
WT 5.4
Peripheral effective cutting edge count: ZEFP 7
2D Model (DXF)
CAD data name Download
AHX640S-160C07NR
CAD

3D Detail Model (STP,STL)
CAD data name Download
AHX640S-160C07NR
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AHX640S-160C07NR_MR0_8
0.8 CAD CAD
AHX640S-160C07NR_MR1_2
1.2 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
