Face Cutter >VPX300_MM >VPX300-080A10AR

Face Cutter

VPX300_MM
(Multi-functional Cutter for High Efficiency Machining)

VPX300-080A10AR

Product Information

  • Arranging the inserts tangentially secures high holder rigidity.
  • Different types of milling cover a wide variety of situations.

The actual product may differ from the displayed image.

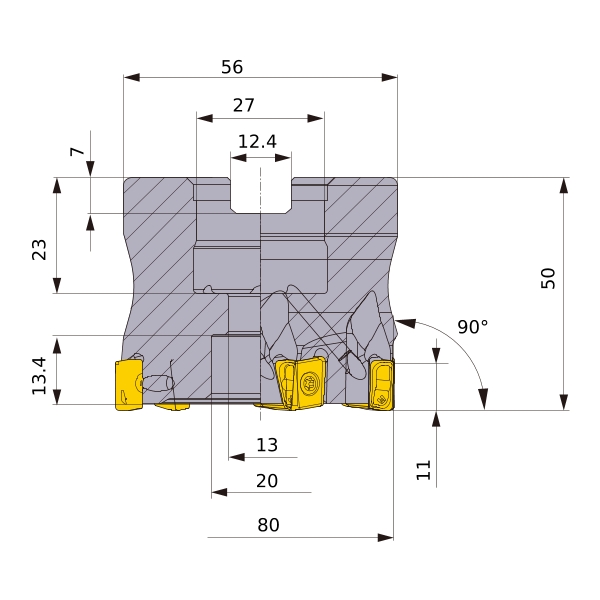

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
DC 80
DCON 27
DCSFMS 56
DAH 13
DCCB 20
KAPR 90°
RMPX 0.45°
L8 7
LF 50
CBDP 23
LCCB 13.4
KWW 12.4
APMX 11
GAMP -6°
GAMF -22.5°
WT 0.99
Cutting item count: CICT 10
Peripheral effective cutting edge count: ZEFP 10
Face effective cutting edge count: ZEFF 10
Effective Cutting Edge 10
RPMX 11500
2D Model (DXF)
CAD data name Download
VPX300-080A10AR
CAD

3D Detail Model (STP,STL)
CAD data name Download
VPX300-080A10AR
CAD

3D Light Model (STP,STL)
CAD data name RE Download
VPX300-080A10AR_MR0_2
0.2 CAD
VPX300-080A10AR_MR0_4
0.4 CAD
VPX300-080A10AR_MR0_8
0.8 CAD
VPX300-080A10AR_MR1_0
1 CAD
VPX300-080A10AR_MR1_2
1.2 CAD
VPX300-080A10AR_MR1_6
1.6 CAD
VPX300-080A10AR_MR2_0
2 CAD
VPX300-080A10AR_MR2_4
2.4 CAD
VPX300-080A10AR_MR3_0
3 CAD
VPX300-080A10AR_MR3_2
3.2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
