Face Cutter >WWX400_MM >WWX400-100B09AR

Face Cutter

WWX400_MM
（90˚ FACE MILLING CUTTER）

WWX400-100B09AR

Product Information

  • The indexable inserts with 6 usable cutting edges offer lower cost per cutting edge
  • Innovative geometry generates low cutting forces.
  • reliable machining
  • The milling cutter with cutting diameter DC = 50 mm has a built-in set bolt.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

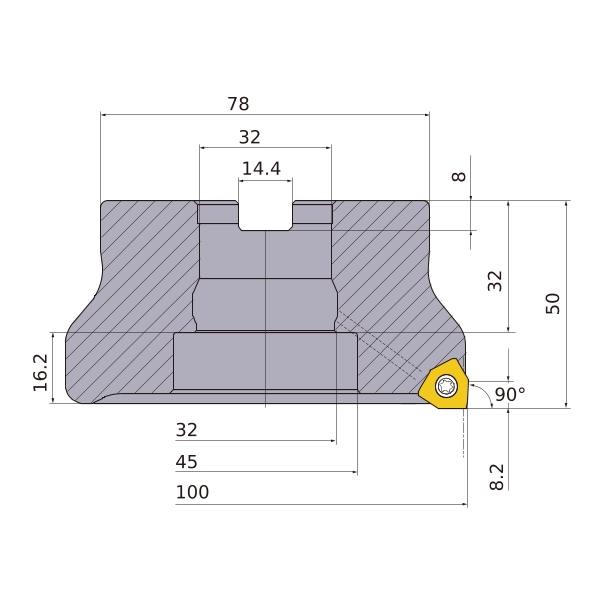

DC 100
DCON 32
DCSFMS 78
DAH 32
DCCB 45
KAPR 90°
L8 8
LF 50
CBDP 32
LCCB 16.2
KWW 14.4
APMX 8.2
GAMP -6°
GAMF -8.5°
WT 1.5
Cutting item count: CICT 9
Peripheral effective cutting edge count: ZEFP 9
RPMX 10700
2D Model (DXF)
CAD data name Download
WWX400-100B09AR
CAD
