Grooving GY Series

GYQ00
（00° type holder）

1G2R9G1

Product Information

  • Highly reliable insert clamping
  • High accuracy, long life inserts for a wide variety of machining applications

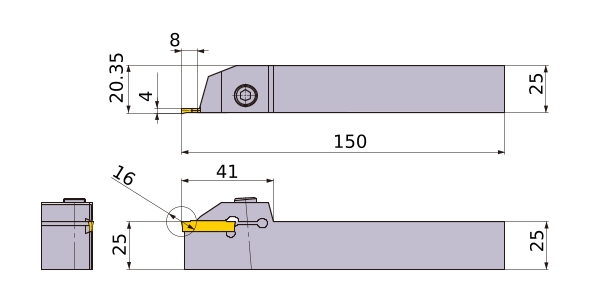

  • Dimensions shown are when the gauge insert is used.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M
CUTDIA 16
B 25
LF 150
LH 41
CDX 8
WF 20.35
H 25
HF 25
CW 4
Peripheral effective cutting edge count: ZEFP 1
Modular Holder GYQR2525M00-G08

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.

  • Turning Inserts
