Insert for Rotating Tools >SUFT16R10
The actual product may differ from the displayed image.

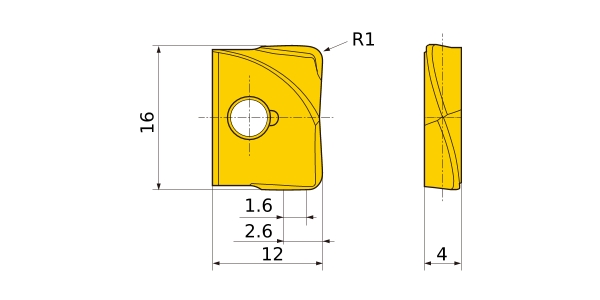

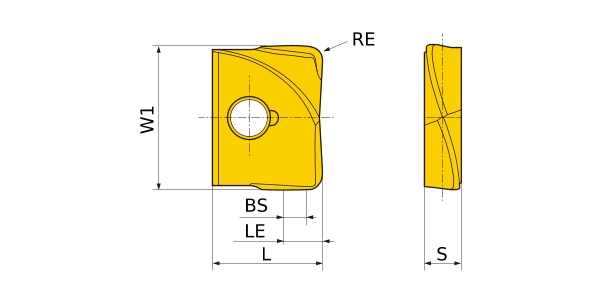

For details, please check the dimensions below.
Diameter (Unit) | |
---|---|
Name of Grade | Carbide |
Grade | MP8010 |
ANSI | SUFT16R10 |
Stock | |
Unit of Length | M |
D1 | 4 |
LE | 2.6 |
L | 12 |
W1 | 16 |
BS | 1.6 |
S | 4 |
RE | 1 |
Tolerance | IC:0 - -0.020 RE:±0.010 L:±0.015 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
