Small Tools >SDNC-SM >SDNCL1616M11-SM

Small Tools

SDNC-SM


SDNCL1616M11-SM

Product Information

  • For gang type tool posts.
  • High accuracy ISO insert
  • Screw-on type.

The actual product may differ from the displayed image.

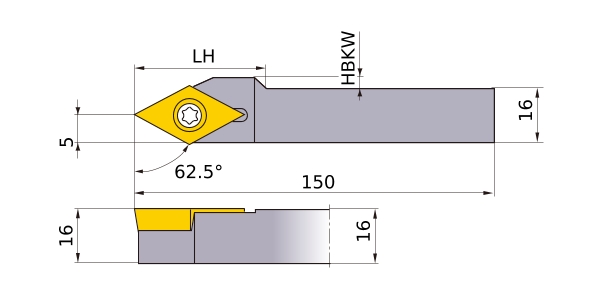

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand L
Stock
Unit of Length M
B 16
KAPR 62.5°
LF 150
H 16
HF 16
WF2 5
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__11T3
2D Model (DXF)
CAD data name Download
SDNCL1616M11-SM
CAD

3D Detail Model (STP,STL)
CAD data name Download
SDNCL1616M11-SM
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SDNCL1616M11-SM_MR0_2
0.2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
