Solid End Mills

MS2LS
(End mill, long cut length, 2 flute)

MS2LSD0030

Product Information

  • 2 flute end mill for general use.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock
Unit of Length M

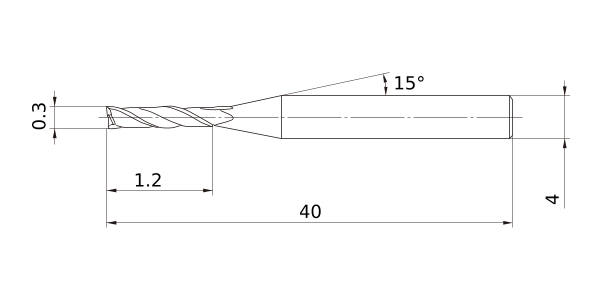

DC 0.3
DCON 4
BHTA2 15°
LF 40
APMX 1.2
FHA 30°
Peripheral effective cutting edge count: ZEFP 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS
2D Model (DXF)
CAD data name Download
MS2LSD0030
CAD

3D Light Model (STP,STL)
CAD data name Download
MS2LSD0030
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
