Solid End Mills >VF6MHVRB >VF6MHVRBD0600R100

Solid End Mills

VF6MHVRB
（Corner radius end mill, Medium cut length, 6 flute, Irregular helix flutes）

VF6MHVRBD0600R100

Product Information

  • Newly developed irregular helix 6 flute geometry reduces vibrations and achieves high efficiency machining.
  • Suitable for machining of difficult-to-cut materials such as stainless steel, titanium alloy and inconel.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

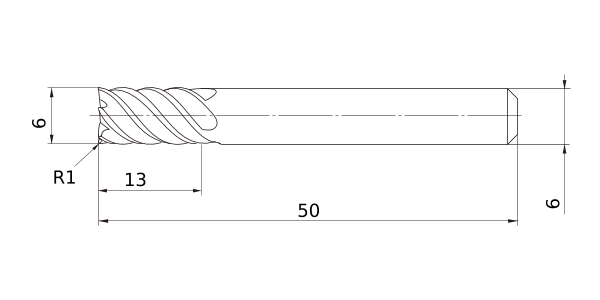

Unit of Length M
DC 6
DCON 6
LF 50
APMX 13
RE 1
Peripheral effective cutting edge count: ZEFP 6
R Tolerance - -0.015
R Tolerance + 0.015
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated VF
