Solid End Mills >VQXL >VQXLD0030N009

Solid End Mills

VQXL
（End mill, Short cut length, 4 flute, Long neck）

VQXLD0030N009

Product Information

  • Enhancing efficiency with improved chip disposal by adopting the VQ coating.
  • Increased number of flutes provides high efficiency and longer tool life.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock

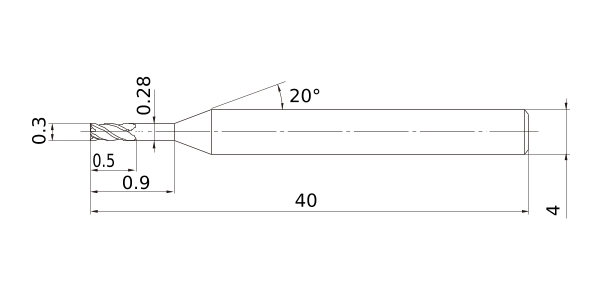

Unit of Length M
DC 0.3
DCON 4
DN 0.28
BHTA2 20°
LF 40
LU 0.9
APMX 0.5
FHA 35°
Peripheral effective cutting edge count: ZEFP 3
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.01
Coated VQ
2D Model (DXF)
CAD data name Download
VQXLD0030N009
CAD
