Solid End Mills >DC2XLB >DC2XLBR0050N050

Solid End Mills

DC2XLB
(Ball nose, Short cut length, 2 flute, Long neck, For hard brittle materials)

DC2XLBR0050N050

Product Information

  • DC long neck ball nose end mill for carbide and other hard brittle materials.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Stock

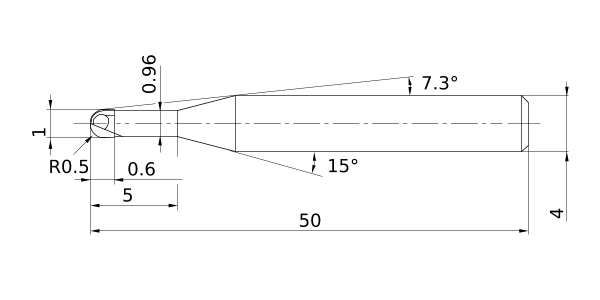

Unit of Length M
DC 1
DCON 4
DN 0.96
B2 7.3°
BHTA2 15°
LF 50
LU 5
APMX 0.6
RE 0.5
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.008
Coated DC
3D Light Model (STP,STL)
CAD data name Download
DC2XLBR0050N050
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
