Solid End Mills >DC2XLB >DC2XLBR0100N100

Solid End Mills

DC2XLB
（Ball nose, Short cut length, 2 flute, Long neck, For hard brittle materials）

DC2XLBR0100N100

Product Information

  • DC long neck ball nose end mill for carbide and other hard brittle materials.

The actual product may differ from the displayed image.

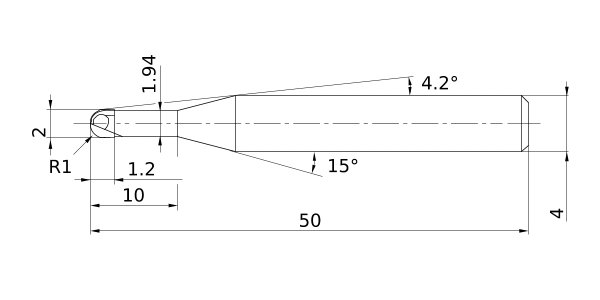

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M
DC 2
DCON 4
DN 1.94
B2 4.2°
BHTA2 15°
LF 50
LU 10
APMX 1.2
RE 1
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.01
R Tolerance + 0.01
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.008
Coated DC
