Solid End Mills >iMX_RC4F_C >IMX10RC4F100R05010C

Solid End Mills

iMX_RC4F_C
（Roughing head, 4 flute, with coolant hole）

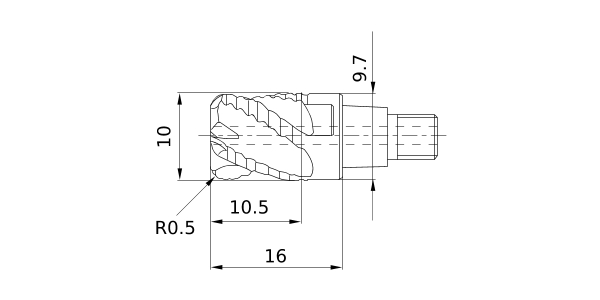

IMX10RC4F100R05010C

Product Information

  • The roughing edge geometry reduces cutting resistance. Effective when rigidity of the machine or work piece is low.
  • Centre through coolant hole provides excellent chip evacuation.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade EP7020
Stock
Unit of Length M
DC 10
DCON 9.7
LH 16
APMX 10.5
FHA 35°
RE 0.5
Peripheral effective cutting edge count: ZEFP 4
Effective Cutting Edge 4
