IMX16-A20N088L150C

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Stock
Unit of Length M

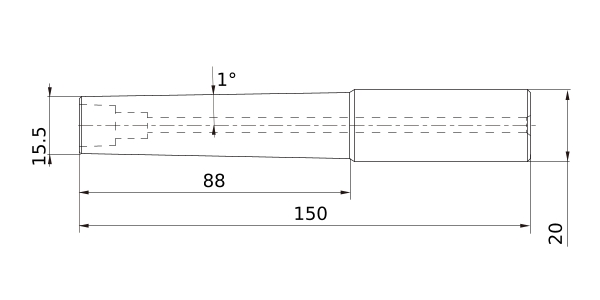

DCONWS 15.5
DCONMS 20
BHTA 1°
LF 150
LB 88
3D Detail Model (STP,STL)
CAD data name Download
IMX16-A20N088L150C
