Spare Parts >GYSR2012JX00-E18

Spare Parts

GYSR2012JX00-E18

Product Information

The actual product may differ from the displayed image.

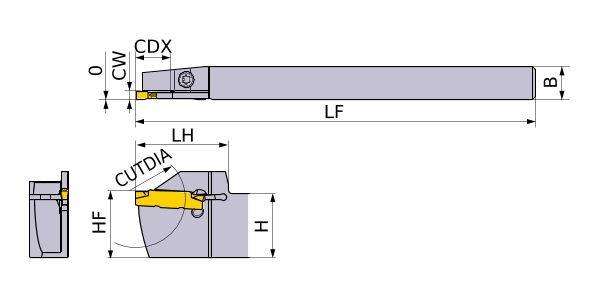

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
CUTDIA 36
B 12
LF 120
LH 28
CDX 18
H 20
HF 20
CW 2.5
2D Model (DXF)
CAD data name Download
GYSR2012JX00-E18
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYSR2012JX00-E18
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYSR2012JX00-E18_CW2_39_N_MR0_2
0.2 CAD
GYSR2012JX00-E18_CW2_50_N_MR0_2
0.2 CAD
GYSR2012JX00-E18_CW2_50_N_MR1_3
1.3 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
