Spare Parts >GYSR1616JX00-F17

Spare Parts

GYSR1616JX00-F17

Product Information

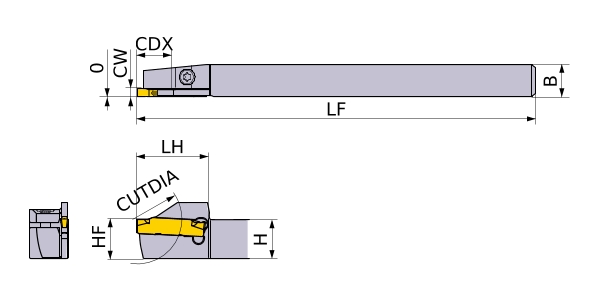

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M
CUTDIA 34
B 16
LF 120
LH 27
CDX 17
H 16
HF 16
CW 3
2D Model (DXF)
CAD data name Download
GYSR1616JX00-F17
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYSR1616JX00-F17
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYSR1616JX00-F17_CW3_00_N_MR0_2
0.2 CAD
GYSR1616JX00-F17_CW3_00_N_MR1_5
1.5 CAD
GYSR1616JX00-F17_CW3_18_N_MR0_2
0.2 CAD
GYSR1616JX00-F17_CW3_18_N_MR1_5
1.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
