Spare Parts >GYQR2020K00-F06

Spare Parts

GYQR2020K00-F06

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Hand R
Stock
Unit of Length M

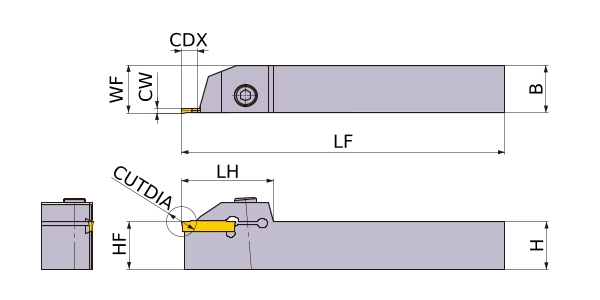

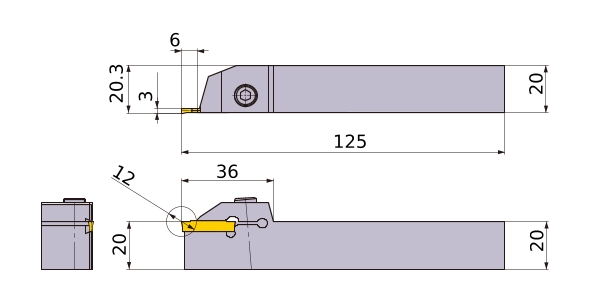

CUTDIA 12
B 20
LF 125
LH 36
CDX 6
WF 20.3
H 20
HF 20
CW 3
2D Model (DXF)
CAD data name Download
GYQR2020K00-F06
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQR2020K00-F06
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQR2020K00-F06_CW3_00_N_MR0_2
0.2 CAD
GYQR2020K00-F06_CW3_00_N_MR1_5
1.5 CAD
GYQR2020K00-F06_CW3_18_N_MR0_2
0.2 CAD
GYQR2020K00-F06_CW3_18_N_MR1_5
1.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
