Turning Inserts >CCGT09T304MR-SS

Turning Inserts

CCGT09T304MR-SS

Product Information

The actual product may differ from the displayed image.

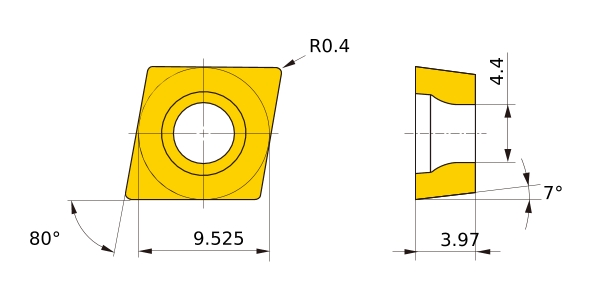

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade MS6015
ANSI CCGT32.51MRSS
Hand R
Stock
Unit of Length M
D1 4.4
IC 9.525
EPSR 80°
GAN 14°
AN
LBB 1
LE 5
S 3.97
RE 0.38
Breaker R-SS
3D Detail Model (STP,STL)
CAD data name Download
CC09T304R
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
