Turning Inserts >CCMT060202-LS

Turning Inserts

CCMT060202-LS

Product Information

The actual product may differ from the displayed image.

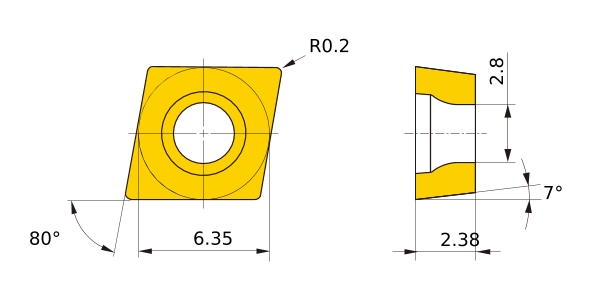

For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Name of Grade Carbide
Grade MP9015
ANSI CCMT21.50.5LS
Hand N
Stock
Unit of Length M
D1 2.8
IC 6.35
EPSR 80°
AN
S 2.38
RE 0.2
Breaker LS
Classification of Grades
Coated・Carbide MP9005
Coated・Carbide MP9025
Non-coated・Carbide MT9005
3D Detail Model (STP,STL)
CAD data name Download
CC060202N
CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
