Brocas >MNS_DIN >MNS0660-L15C

Brocas

MNS_DIN


MNS0660-L15C

Información sobre productos

  • Óptimo filo de corte para mecanizado de aleaciones de aluminio.

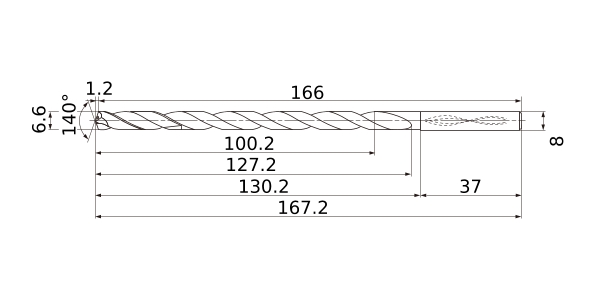

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad TF15
Existencia
Unidad de longitud M
D1 6.6
D4 8
DC 6.6
DCON 8
SIG 140°
LF 166
OAL 167.2
LH 130.2
LU 100.2
LCF 127.2
LS 37
FHA 30°
ld 15
PL 1.2
Effective Cutting Edge 2
Tolerancia máx. de diámetro de filo de corte 0.021
Tolerancia mín. de diámetro de filo de corte 0.006
Tipo de refrigerante Interior
Modelo 2D (DXF)
Nombre datos CAD Descargar
MNS0660-L15C
