Brocas > DWAE-MINI

Brocas

DWAE-MINI
（BROCAS DE METAL DURO PARA TORNOS MULTIHUSILLOS Y PEQUEÑOS TORNOS CNC）

  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.
  • Disclaimer
    Be sure to read the following before downloading the data or file you selected. Please understand that if you decide to proceed with the next step it will be at your own discretion and responsibility.


    As far as allowed by law, Mitsubishi Materials Corporation shall not be held responsible in any way, either manifest or implied, including but not limited to legal warranty against defects, warranty of merchantability, warranty of fitness for a special purpose, or warranty against infringement of rights.Therefore, in the event that the above-stated download of the selected data or file results in the customer suffering a loss of data or damage to a computer or system, Mitsubishi Materials Corporation shall not be held in anyway responsible for said loss or damage. Further, the contents, including data and files, may be modified or terminated without notice, and Mitsubishi Materials Corporation does not warranty that any posted contents are error free.


    If you agree to this disclaimer, please select “Agree” below.
    Thank you for your understanding and cooperation.

  • A diferencia de los filos de corte convencionales que se dañan fácilmente, la resistencia al desgaste de la parte exterior del filo de corte ondulado garantiza el afilado y la robustez de la herramienta.
  • CALIDAD DE RECUBRIMIENTO DP102A
  • FORMA EXCLUSIVA DE HÉLICE PARA UNA MAYOR RIGIDEZ

The actual product may differ from the displayed image.

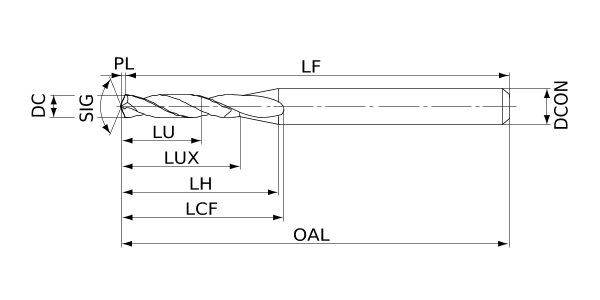

For details, please check the dimensions below.

Tipo1 [Extendido]

  1 2
Número de referencia Tipo CAD Tipo de refrigerante Mano Nombre de calidad Calidad Existencia
DWAE0100X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0100X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0110X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0110X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0120X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0120X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0130X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0130X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0140X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0140X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0150X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0150X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0160X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0160X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0170X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0170X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0180X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0180X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0190X02S030 Tipo1 CAD Exterior   Metal Duro DP102A
DWAE0190X04S030 Tipo1 CAD Exterior   Metal Duro DP102A
D1 IC DMIN CUTDIA DAXX DC DC1 DC2 ld LU BHTA BHTA1 BHTA2 BHTA3 BHTA4 BHTA5 SIG SIG1 SIG2 L3 LBB CDX L20 LDRED L15 LCF L2 LH L19 LPR L1 L L24 FLGT LF CBDP OAL D4 DCON D2 DCX D5 DN DCSFMS BD BD1 BD2 BD3 BD4 BD5 D8 DAH DAH1 DAH2 DCCB CNT D9 B L7 LCCB L8 L9 HBKW LS H1 H H2 HF HBH W1 KWW F1 WF BS S1 WF2 S4 S Z2 PDY PDX ap APMX HTB DCN CDI DCINX BDX CWX LBX RR GAMF GAMO LAMS ALF FHA KRINS STA WT R PRFRAD RE RE1 RE2 RE3 LTA LBYD KWL Cutting item count: CICT Peripheral effective cutting edge count: ZEFP Face effective cutting edge count: ZEFF Effective Cutting Edge Rompevirutas Uso Fresa Lama modular Insertar número DBC DBC1 DBC2 DBC3 DCONWS DCONMS KAPR KAPR1 KAPR2 LB LB1 LB2 LB3 LB4 LB5 LE LE1 LE2 LE3 TX1 TX2 TX3
1 2 2.2 135° 7.7 8.7 44.8 45 3 25° 2
1 4 4.2 135° 9.9 10.7 44.8 45 3 25° 2
1.1 2 2.4 135° 8.1 8.9 44.8 45 3 25° 2
1.1 4 4.6 135° 10.5 11.1 44.8 45 3 25° 2
1.2 2 2.6 135° 8.5 9.2 44.8 45 3 25° 2
1.2 4 5 135° 11.1 11.6 44.8 45 3 25° 2
1.3 2 2.9 135° 9 9.5 44.7 45 3 25° 2
1.3 4 5.5 135° 11.9 12.1 44.7 45 3 25° 2
1.4 2 3.1 135° 9.4 9.7 44.7 45 3 25° 2
1.4 4 5.9 135° 12.5 12.5 44.7 45 3 25° 2
1.5 2 3.3 135° 9.8 9.9 44.7 45 3 25° 2
1.5 4 6.3 135° 13.1 12.9 44.7 45 3 25° 2
1.6 2 3.5 135° 10.2 10.1 44.7 45 3 25° 2
1.6 4 6.7 135° 13.7 13.3 44.7 45 3 25° 2
1.7 2 3.8 135° 10.7 10.4 44.6 45 3 25° 2
1.7 4 7.2 135° 14.4 13.8 44.6 45 3 25° 2
1.8 2 4 135° 11.1 10.6 44.6 45 3 25° 2
1.8 4 7.6 135° 15.1 14.2 44.6 45 3 25° 2
1.9 2 4.2 135° 11.5 10.9 44.6 45 3 25° 2
1.9 4 8 135° 15.7 14.7 44.6 45 3 25° 2
  1 2

Existencia

:Existencia en Europa
:A fabricar según demanda
:Existencia en Europa Será reemplazado por nuevos productos.
:Existencia en Japón

  • Estado de corte recomendado
