Ranurado (otros) >CG >CG0407RS-10B

Ranurado (otros)

CG
（Micro Mini Twin）

CG0407RS-10B

Información sobre productos

  • De Metal Duro con 2 filos de corte
  • Torneado continuo, desde torneado interior hasta torneado frontal.
  • Cada barra de mandrinar se presenta en dos versiones, con o sin rompevirutas.
  • El mínimo diámetro de corte es de 2,2mm.

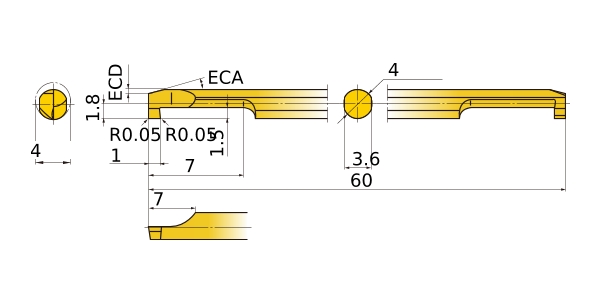

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Nombre de calidad Metal Duro
Calidad TF15
Mano R
Existencia
Unidad de longitud M
DMIN 4
DCON 4
LF 60
LU 7
CDX 7
WF 1.8
H 3.6
CW 1
WF2 1.5
REL 0.05
RER 0.05
Peripheral effective cutting edge count: ZEFP 1
Clasificación de calidades
Recubrimiento・Metal Duro VP15TF
