3KD
（Triangular shank (Type 6.5)(Type 10)(Type 13)）
3KD6D0950
The actual product may differ from the displayed image.

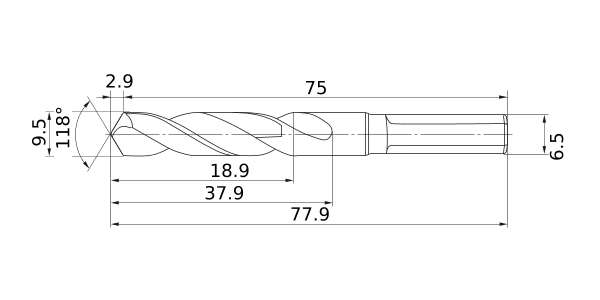

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Stock |
|
| Unit of Length | M |
| DC | 9.5 |
| DCON | 6.5 |
| SIG | 118° |
| LF | 75 |
| OAL | 77.9 |
| LU | 18.9 |
| LCF | 37.9 |
