End Mills >AOX445 >AOX445R503S32

End Mills

AOX445
（HIGH EFFICIENCY CUTTING FOR CAST IRON）

AOX445R503S32

Product Information

  • Easy operation and cleaning.
  • Octagonal double-sided solid CBN insert.
  • Economical 16 corner use. (when depth of cut is 3mm)
  • High efficiency machining from roughing to finishing.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Expand ]

Type   [Expand ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Hand R
Stock
Unit of Length M

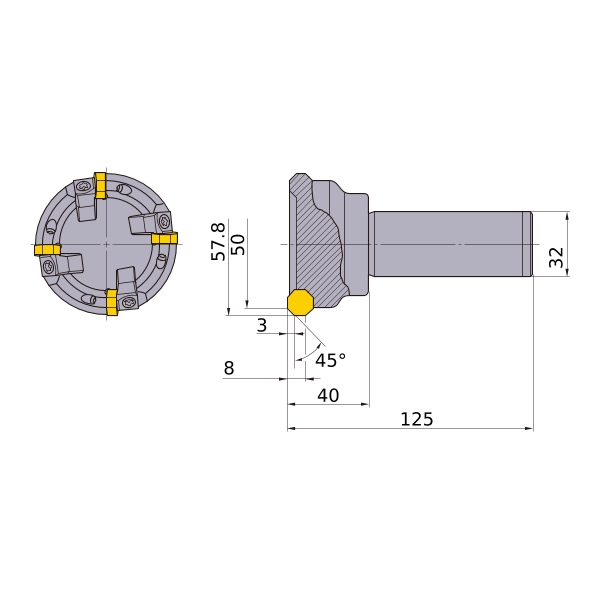

A1 3
AZ 3
DC 50
DCX 57.8
DCON 32
KAPR 45°
LF 125
LH 40
APMX 8
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
RPMX 13000
2D Model (DXF)
CAD data name Download
AOX445R503S32
CAD
